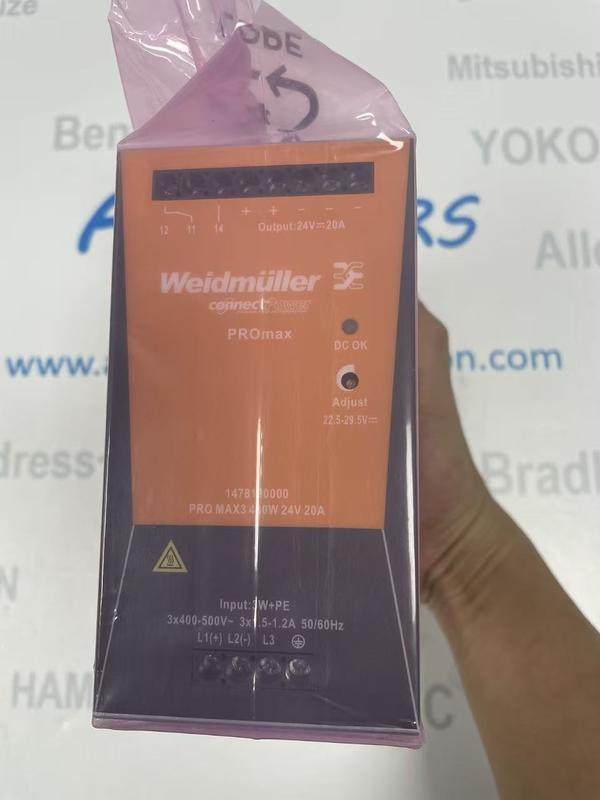

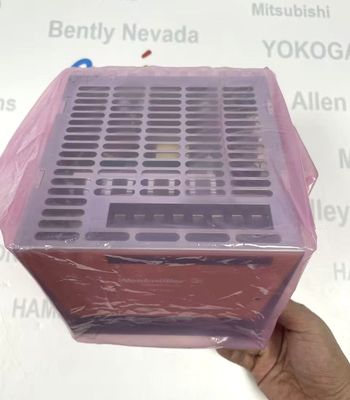

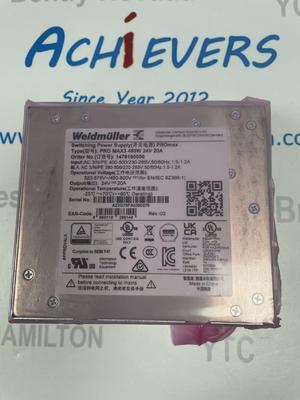

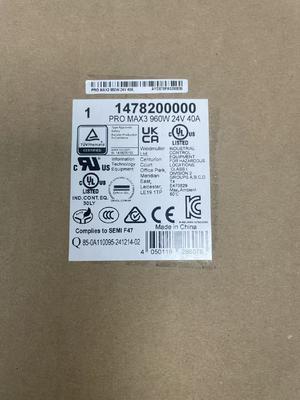

Weidmuller PRO MAX3 switch-mode power supplies engineered
Product Details:
Manufacturer : Weidmuller
Product No. : PRO MAX3
https://www.achievers-automation.com More Products
The Weidmuller PRO MAX3 series represents a premium line of switch-mode power supplies engineered for demanding industrial automation environments. Designed to deliver reliable, efficient power even under extreme conditions, these units excel in continuous overload scenarios (up to 20%) and short-term peak loads (300%), making them ideal for critical applications in control cabinets and industrial facilities worldwide. With a compact form factor and wide operating temperature range, the PRO MAX3 series combines durability, flexibility, and high performance to meet the rigorous requirements of modern industrial systems.
Description:
| Model Variants |
PRO MAX3 120W 24V |
5A output current, 24V DC nominal output |
|
PRO MAX3 240W 24V |
10A output current, 24V DC nominal output |
|
PRO MAX3 480W 24V |
20A output current, 24V DC nominal output |
|
PRO MAX3 960W 24V |
40A output current, 24V DC nominal output |
| Input Parameters |
AC Input Voltage Range |
3x 320-575V AC / 2x 360-575V AC (3-phase) |
|
DC Input Voltage Range |
450-800V DC |
|
Frequency Range |
45-65Hz (AC input) |
|
Power Factor (Typical) |
0.8 (at 400V input, 25°C ambient, 480W output) |
| Output Parameters |
Nominal Output Voltage |
24V DC ±1% (adjustable via potentiometer) |
|
Output Voltage Range |
22.5V (min) - 29.5V (max) |
|
Residual Ripple |
<50mVss (at nominal voltage, full load) |
|
AC Failure Bridging Time |
Minimum 20ms (at nominal current) |
| Physical Dimensions |
Width |
70mm (2.756 inches) |
|
Height |
130mm (5.118 inches) |
|
Depth |
150mm (5.905 inches) |
|
Net Weight |
1,600g (for 480W model) |
| Environmental Compliance |
RoHS Status |
Compliant (with exemptions 7a, 7ci) |
|
REACH Compliance |
Meets SVHC requirements (Lead: 7439-92-1) |
|
SCIP Identification |
6D8CDF22-8230-4AF8-86C8-3558C716666D |
| Protection & Safety |
Protection Features |
Short-circuit protection, reverse voltage protection |
|
Surge Voltage Category |
II |
|
Earth Leakage Current (Max) |
3.5mA |
| Installation & Operation |
Mounting Position |
Horizontal on TS35 mounting rail (50mm clearance top/bottom for airflow) |
|
Connection System |
Screw connection (input/output) |
|
Status Indication |
LED (red/green) + relay (green: ≥21.6V, relay on; red: ≤20.6V, relay off) |
| Reliability |
MTBF (Min) |
642,000 hours (per SN 29500 standard, 25°C ambient, 400V input, 480W output) |
