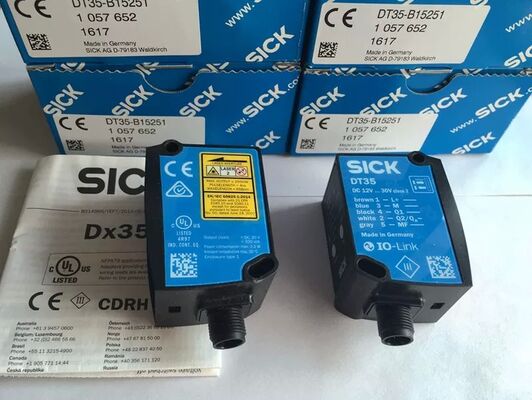

SICK dt35 b15851Time-of-Flight Infrared Laser Distance Sensor
Product Details:
Manufacturer : Sick
Product No. : dt35 b15851
https://www.achievers-automation.com More Products
Reliable Industrial Component Sourcing for Enterprises
This industrial automation component is supplied for enterprise procurement .Made-to-order and forward delivery are supported, with pricing quoted per inquiry.
To reduce sourcing risk, each order is handled individually with support for model confirmation, condition clarification, and lead time estimation before order placement. Clear quotation terms and consistent communication are provided to help partners manage expectations and complete transactions with confidence. Additional verification or clarification is available when required, supporting professional procurement and long-term cooperation.
Th

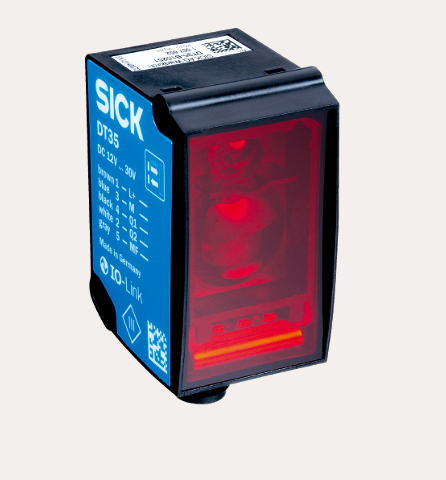

e SICK DT35-B15851 is a compact mid-range Time-of-Flight (ToF) laser distance sensor belonging to the SICK Dx35 product family, designed for safe non-contact distance measurement, workpiece positioning, filling level monitoring and object presence detection in general and food-grade industrial automation environments
SICK.
Distinguished from red-laser DT35 variants, this unit adopts an 827 nm infrared Class 1 laser source with zero mandatory laser safety guarding requirements, fully compliant with IEC 60825-1 standards. It delivers stable readings on low-reflectivity targets down to 6% remission, with five adjustable response speed modes to match high-speed conveying or static level measurement. Integrated dual push-pull digital outputs, switchable 4–20 mA / 0–10 V analog signals and IO-Link V1.1 intelligent communication support remote parameterization and real-time diagnostic logging. The reinforced ABS/PC block housing carries IP65/IP67 ingress protection, tolerating wide temperature fluctuations, coolant splashes and workshop dust accumulation, widely deployed in logistics, packaging, automotive assembly and food processing production lines.
Description:
| Parameter Item |
SICK DT35-B15851 Official Datasheet Value |
| Full Model Code |
DT35-B15851 |
| SICK Factory Order Part Number |
1057653 |
| Measuring Principle |
Time-of-Flight (ToF) laser ranging with HDDM™ technology |
| Laser Source |
827 nm infrared laser, Laser Class 1 (IEC 60825-1:2014) |
| Measuring Range (90% remission) |
50 mm ~ 12,000 mm |
| Measuring Range (18% remission) |
50 mm ~ 5,300 mm |
| Measuring Range (6% remission) |
50 mm ~ 3,100 mm |
| Measurement Resolution |
0.1 mm (100 μm) |
| Typical Measurement Accuracy (+20 °C) |
±10 mm |
| Repeatability |
≤0.5 mm |
| Adjustable Response Speeds |
2.5 ms / 6.5 ms / 12.5 ms / 24.5 ms / 96.5 ms |
| Corresponding Max Switching Frequency |
333 Hz / 100 Hz / 50 Hz / 25 Hz / 6 Hz |
| Max Ambient Light Immunity |
40,000 lx sunlight interference resistance |
| Laser Spot Size (2 m distance) |
15 mm × 15 mm |
| Configurable Hysteresis Range |
0 mm ~ 11,950 mm (adjustable via IO-Link) |
| Specification Category |
Detailed Technical Data |
| Supply Voltage |
DC 12 V ~ 30 V; IO-Link ≥18 V DC; analog voltage output ≥13 V DC |
| Max Power Consumption |
≤1.7 W (no load, +20 °C) |
| Signal Output Configuration |
2 × push-pull digital (PNP/NPN invertible, short-circuit protected)
1 × analog output: switchable 4–20 mA / 0–10 V (12-bit resolution) |
| Digital Communication Interface |
IO-Link V1.1, 38.4 kbit/s data rate, supports parameterization & diagnostic data |
| Multifunctional Input (MF) |
Laser disable, external teach function, factory reset trigger |
| Connector Type |
M12 5-pin male plug |
| Housing Material |
Reinforced ABS + PC plastic |
| Optical Window Material |
Anti-scratch PMMA |
| Overall Dimensions (W × H × D) |
32 mm × 58.67 mm × 42.7 mm |
| Net Weight |
65 g |
| Ingress Protection Grade |
IP65, IP67 |
| Operating Ambient Temperature |
-30 °C ~ +55 °C |
| Storage Temperature Range |
-40 °C ~ +75 °C |
| Shock & Vibration Compliance |
EN 60068-2-6, EN 60068-2-27 industrial test standards |
| EMC Standard |
EN 61326-1 industrial electromagnetic compatibility |
| Protection Class |
Class III |
