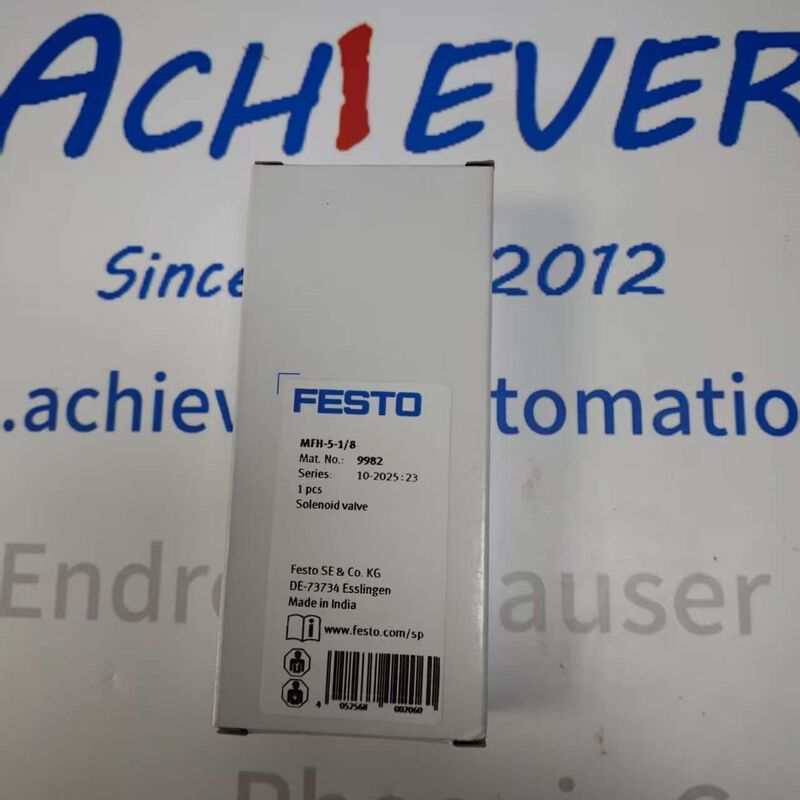

Festo MFH-5-18 Way Monostable Solenoid Poppet Valve
Description:
Manufacturer : Festo
Product No. : MFH-5-18
https://www.achievers-automation.com More Products
Reliable Industrial Component Sourcing for Enterprises
This industrial automation component is supplied for enterprise procurement .Made-to-order and forward delivery are supported, with pricing quoted per inquiry.
To reduce sourcing risk, each order is handled individually with support for model confirmation, condition clarification, and lead time estimation before order placement. Clear quotation terms and consistent communication are provided to help partners manage expectations and complete transactions with confidence. Additional verification or clarification is available when required, supporting professional procurement and long-term cooperation.

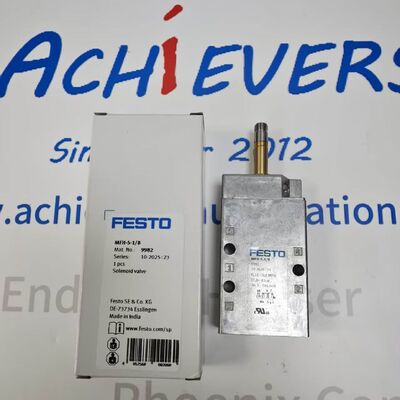

The Festo MFH-5-1/8 (short version MFH-5-18) is a classic 5/2-way monostable poppet solenoid valve from the Festo MFH series. It adopts internal pilot operation and mechanical spring reset structure, which realizes stable air channel switching for double-acting pneumatic cylinders.
All five ports adopt G1/8 threaded connection. The valve body is made of die-cast aluminum with NBR soft sealing, featuring fast response speed and long switching life. The electromagnetic coil needs to be purchased separately, and the whole valve assembly reaches IP65 protection level after coil installation
Festo.
Detail:
| Parameter Item |
Technical Specification |
| Full Model |
MFH-5-1/8 (MFH-5-18) |
| Manufacturer |
Festo |
| Original Part Number |
9982 |
| Valve Function |
5/2-way, Monostable (Solenoid + Spring Return) |
| Structure Type |
Poppet Seat, Pilot Actuated |
| Nominal Size |
5 mm |
| Rated Flow Rate |
500 l/min (DIN 1343 Standard) |
| Port Thread |
All ports G1/8 (ISO 228-1) |
| Mounting Method |
Through-hole installation or PR rail manifold mounting |
| Grid Dimension |
27 mm |
| Valve Body Material |
Die-cast Aluminium Alloy |
| Seal Material |
NBR Nitrile Rubber |
| Manual Override |
Detenting Locking Type |
| Net Weight |
270 g |
| Switch-on Time |
8 ms |
| Switch-off Time |
36 ms |
| Specification Item |
Technical Value |
| Working Pressure Range |
1.8 bar ~ 8 bar |
| Working Medium |
Compressed air ISO 8573-1:2010 [7:4:4] |
| Lubrication |
Works with lubricated or non-lubricated compressed air |
| Ambient Operating Temperature |
-5°C ~ +40°C |
| Medium Temperature |
-10°C ~ +60°C |
| Storage Temperature |
-20°C ~ +60°C |
| Protection Class (With F Coil) |
IP65 |
| Corrosion Resistance Class |
CRC 1 (Low Corrosion Stress) |
| Certification |
cULus Recognized, RoHS Compliant |
| Max. Switching Frequency |
3 Hz |
| Exhaust Port Function |
Adjustable Throttle Option |
| Flow Direction |
Non-reversible |
