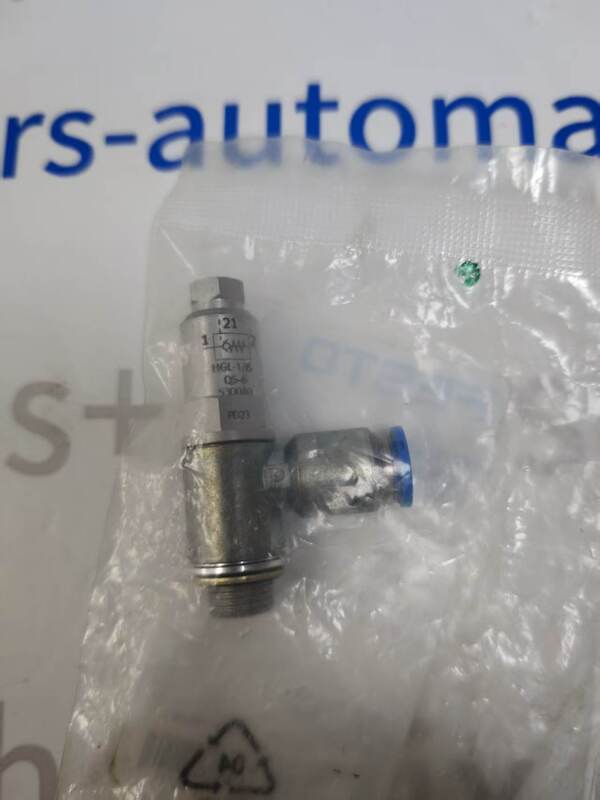

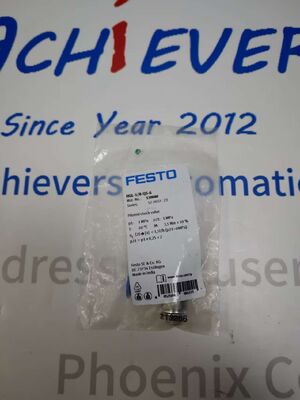

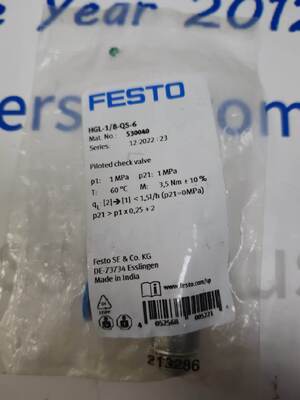

Festo HGL-1/8-QS-6 Piloted Check Valve
Description:
Manufacturer : Festo
Product No. : HGL-1/8-QS-6
https://www.achievers-automation.com More Products
Reliable Industrial Component Sourcing for Enterprises
This industrial automation component is supplied for enterprise procurement .Made-to-order and forward delivery are supported, with pricing quoted per inquiry.
To reduce sourcing risk, each order is handled individually with support for model confirmation, condition clarification, and lead time estimation before order placement. Clear quotation terms and consistent communication are provided to help partners manage expectations and complete transactions with confidence. Additional verification or clarification is available when required, supporting professional procurement and long-term cooperation.
This unit combines a G1/8 male threaded port and QS-6 quick push-in connector for 6mm OD tubing. No extra fittings are needed for fast pipeline assembly. The all-metal valve core and NBR sealing ensure stable performance under fluctuating air pressure. It is widely used for cylinder clamping, machine fixture locking, robot pneumatic braking, and anti-backflow protection on automation production lines.
Detail:
| Parameter Item |
Technical Specification |
| Full Part Number |
HGL-1/8-QS-6 |
| Brand |
Festo |
| Original Code |
530040 |
| Product Type |
Piloted Non-Return Check Valve |
| Port 1 Connection |
QS-6 Push-in Connector (6 mm tubing) |
| Port 2 Connection |
G1/8 External Thread (ISO 228-1) |
| Pilot Port |
M5 Thread Port |
| Mounting Type |
Screw-in Installation |
| Mounting Position |
Unlimited, any orientation |
| Nominal Flow Rate (1→2) |
270 l/min |
| Valve Body Material |
Nickel-plated Brass + Anodized Aluminum |
| Seal Material |
NBR Nitrile Rubber |
| Net Weight |
62 g |
| Tightening Torque |
3.5 Nm |
| Specification Item |
Technical Value |
| Working Pressure Range |
0.5 bar ~ 10 bar |
| Required Pilot Pressure |
2 bar ~ 10 bar |
| Operating Medium |
Compressed air per ISO 8573-1:2010 [7:4:4] |
| Lubrication Condition |
Lubricated or non-lubricated air available |
| Ambient & Medium Temperature |
-10°C ~ +60°C |
| Storage Temperature |
-10°C ~ +60°C |
| Corrosion Resistance Class |
CRC 2 (Moderate Corrosion Stress) |
| Compliance Standard |
RoHS, VDMA24364-B2-L PWIS Free |
| Continuous Locking Performance |
Zero air leakage under static pressure |
| Cleanroom Grade |
ISO 14644-14 Class 4 |
