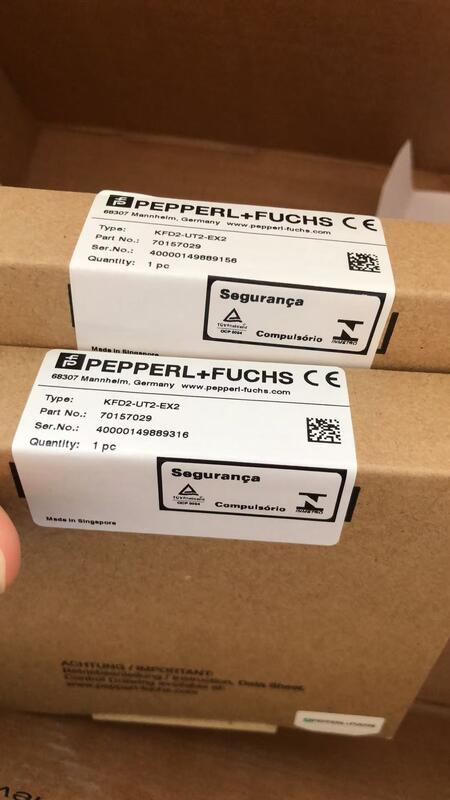

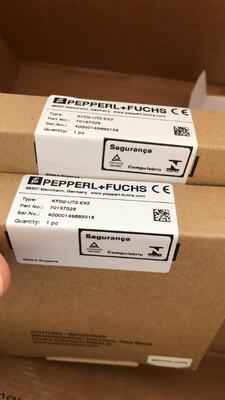

Pepperl+Fuchs KFD2-UT2-EX2 - Dual-Channel Isolated Temperature Safety Barrier (SIL 2)
Description:
Manufacturer : Pepperl+Fuchs
Product No. :KFD2-UT2-EX2
https://www.achievers-automation.com More Product
Detail:
|
Parameter
|
Details
|
|
Product Model
|
Pepperl+Fuchs KFD2-UT2-EX2
|
|
Product Type
|
Dual-channel isolated temperature safety barrier
|
|
Safety Certifications
|
ATEX, IEC 61508/IEC 61511 (SIL 2)
|
|
Hazardous Area Ratings
|
II 1G (Ex ia Ga) IIC; II 1D (Ex ia Da) IIIC
|
|
Power Supply
|
20-30 V DC (rail or terminal connection: 14+, 15-)
|
|
Power Dissipation
|
≤ 1.5 W
|
|
Input Compatibility
|
- RTD: Pt10/Pt50/Pt100/Pt500/Pt1000 (EN 60751), GOST variants, Cu10/Cu50/Cu100, Ni100 (DIN 43760)- Thermocouple: B/E/J/K/N/R/S/T (IEC 584-1), L (DIN 43710), TXK/TXKH/TXA>- Potentiometer: Compatible with 2-wire/3-wire configurations Voltage: -100 to 100 mV
|
|
Input Configuration
|
2-/3-wire (RTD); internal/external cold junction compensation (thermocouple)
|
|
Input Protection
|
Sensor burnout detection, line fault detection (LFD); lead resistance tolerance ≤ 50 Ω per line
|
|
Output Configuration
|
Dual analog current outputs (configurable as 2×input-2×output or 1×input-2×output redundant)
|
|
Output Signal Range
|
0-20 mA or 4-20 mA (programmable per channel)
|
|
Fault Signals
|
Downscale: 0 or 2 mA; Upscale: 21.5 mA (compliant with NAMUR NE43)
|
|
Output Load Capacity
|
0-550 Ω per channel; Open-circuit voltage ≤ 18 V
|
|
Measurement Accuracy
|
- RTD (Pt100, 3-wire): ±(0.06% of measured value + 0.1% of range + 0.1 K)>- Thermocouple: ±(0.05% of measured value + 0.1% of range + 1 K; 1.2 K for R/S types)
|
|
Response Time
|
Max 1.1 s (thermocouple with CJC); 920 ms (3-wire RTD)
|
|
Isolation Rating
|
Safety isolation (input/other circuits): 375 V peak (IEC/EN 60079-11)
|
|

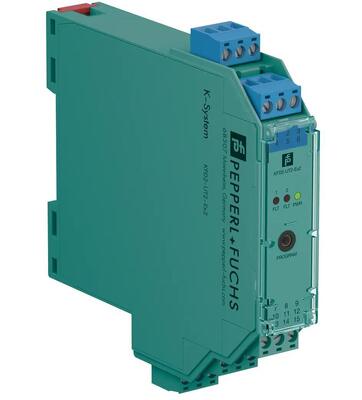

Mechanical Design
|
DIN rail-mount (35 mm, EN 60715); Housing type B2
|
|
Dimensions (W x H x D)
|
20 mm x 119 mm x 115 mm (0.8 x 4.7 x 4.5 inches)
|
|
Operating Temperature Range
|
-20 °C to 60 °C (-4 °F to 140 °F)
|
|
Protection Level
|
IP20 (control cabinet installation)
|
|
Net Weight
|
Approximately 130 g (0.29 lbs)
|
|
Configuration Software
|
PACTware™ (via K-ADP-USB cable and FDT/DTM interface)
|
|
Country of Origin
|
Singapore
|
|
Optional Accessories
|
K-CJC series cold junction compensation terminal blocks for thermocouple applications
|
